SVS Prime Elevation (Pair) | Piano Gloss Surround Speakers

  • Height effects speakers for Dolby Atmos®, DTS:X® and Auro–3D.
  • Direct radiating speakers offer pinpoint accuracy and subtle refinement
  • Includes Multi–Angle Wall Bracket and ceiling mount insert
  • Magnetic SVS logo on the front grille is adjustable to accommodate position


Free Shipping

In Stock

More to consider

SVS Prime Elevation Black Ash (Pair) Surround Speakers<br>

Financing Available!

With the BrandSource Card at OneCall, financing your purchase is just as easy as ordering it. We've teamed up with Brandsource to provide low-interest or no-interest offers on over 3,000 brand-name products - plus the convenience of online payments.

We love to talk to our customers! Give us a call at 1.800.340.4770

We're there for you if things don't work out!
Read our Return Policy

OneCall is an Authorized Dealer for all of the products we carry!
Learn More

Details & Highlights

Product Highlights

    You need speakers that can take full advantage of “object based surround sound”. With the latest advances in surround sound technology like Dolby Atmos, DTS:X and Auro 3D, Prime Elevation speakers by SVS are the world’s most versatile, high performance, home theater speaker designed to launch sound objects into the air and all around your home theater for the most dramatic and immersive audio experience ever. Even in the most difficult spaces, it’s easy to securely install this pair of Prime Elevation speakers, in one simple step, with the innovative multi–Angle Wall Bracket, designed to solve nearly any placement issue, and the classic black gloss housing looks exceptional in any home theater room.

Details from SVS


    The specially optimized angled front baffle, precisely tuned acoustics, high–end components and innovative Multi–Angle Wall Bracket (patent pending) combine to make Prime Elevation the world’s most versatile home theater speaker. Ingeniously engineered to address a multitude of room challenges, Prime Elevation is the perfect solution for imperfect room placement options.


    The prevailing approach to height effects relies on a frequency response limited speaker beaming sound towards the ceiling from below in hopes that it will bounce perfectly back towards the listening area. Ceiling bounce results are unpredictable because of room shape, ceiling design and a number of other factors so it only works under perfect conditions.

    Prime Elevation is an optimal height effects speaker because it directly radiates full–range sound to the listener, refuting the compromised ceiling bounce approach. Our novel solution provides an uncompromised listening experience for anyone who wants to enjoy maximum sonic impact from their state–of–the–art home theater.

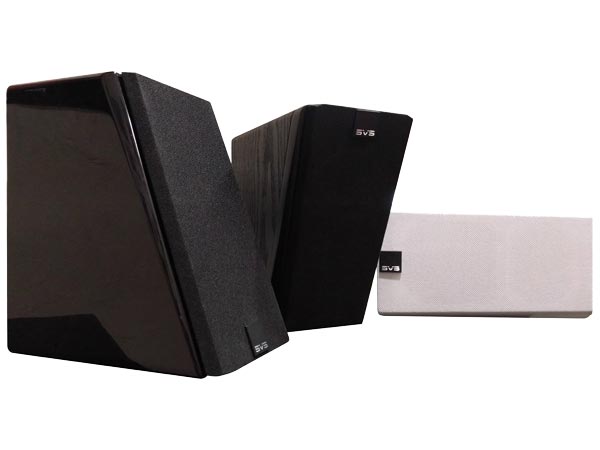

    image of Elevate speaker family
    Here are the most common Prime Elevation applications. Its versatility as a speaker is only limited by your creativity.

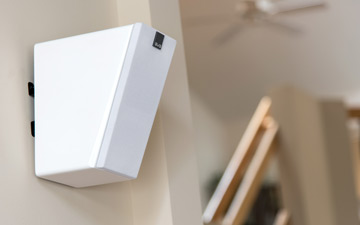

    image of Elevate speaker mounted high on the wall.

    Down–Firing Height Effects Speaker – Placed high on a side wall, the directly radiated sound is a vast improvement over compromised “ceiling bounce” solutions.

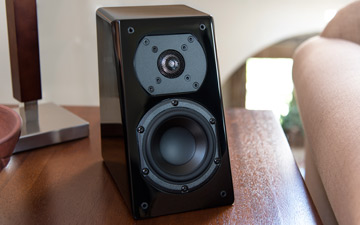

    image of Elevate speaker on table

    Up or Down–Firing Front, LCR and/or Center Channel Speaker – Placed above or below the viewing area, directed at listener, when placement at ear level isn’t possible.

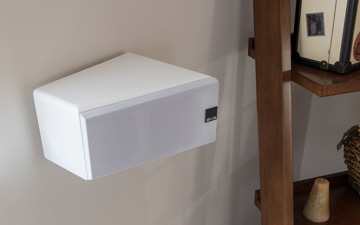

    image of Elevate speaker side mounted.

    Side or Rear–Firing Surround Speaker – Placed on side wall for rear effects or rear wall for side effects when optimal placement is not possible.


    Since Prime Elevation will often be mounted on a wall, we invented a no–fuss Multi–Angle Wall Bracket (patent pending) for hanging the speaker in any of four directions: up or down–firing, and side or rear–firing. The world’s most versatile speaker deserves an equally flexible mounting solution so you get the best sound quality in any room, no matter how or where you decide you use your Prime Elevation.


    The SVS Prime Elevation is a direct radiating height effects speaker with full range dynamics and the refinement of a high end bookshelf speaker. Mount it high on a wall near the ceiling using the simple Multi–Angle Wall Bracket (patent pending) and object based surround sound can be enjoyed at full fidelity in any room, without the compromises of ceiling bounce or in–ceiling speakers.


    The standard approach to height effects speakers, bouncing sound off the ceiling from below, requires perfect room conditions and frequency response limiting of the speaker, both of which negatively affect sound quality. Unfortunately, this method doesn’t work well in many rooms, and even when it does work, not all listening positions enjoy the same level of impact or immersive effects as they do with a full–range, direct radiating solution like Prime Elevation.

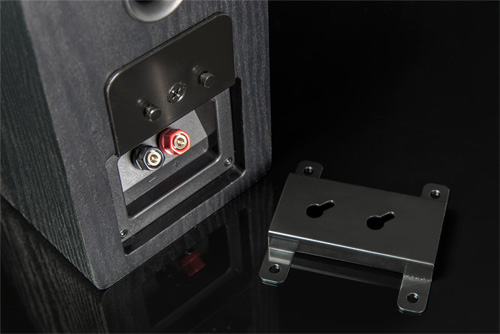

    image of speaker bracket connection.
    Heavily Reinforced Acoustically Inert Cabinet

    Resonance–free cabinet with extra thick MDF walls and bracing ensure flawless resonacne–free sonics.

    Authoritative High Performance Mid–woofer

    Rigorously tested 4.5: Poly Midrange/bass woofer with extreme stiffness to mass tatio for pinpoint accuracy and forceful dynamics at all drive levels.

    Refined, Detaild, Accurate Tweeter

    Prcision engineered 1" aluminum dome tweeter with FEA–optimized diffuser delivers crystal clear high frequencies with amazing transparaency and refinement.

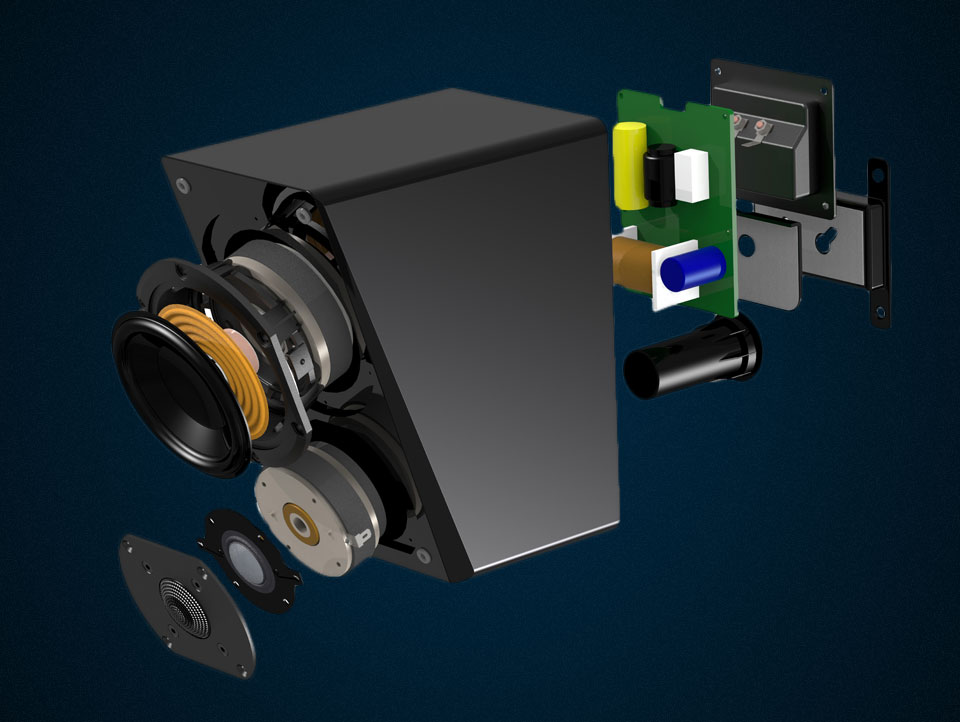

    Exploded view of speaker with parts and components.
    Installation–Friendly Multi–Angle Wall Bracket

    Inoovative wall mounting solution (patent pending) easily installs in minutes for secure mounting in all positions, up, down, or side–firing.

    Precision Tuned Soundmatch Crossover

    Seamlessly blends tweeter and woofer output for impeccable balance, stunning accuracy and uncompormised performance across the frequency spectrum.

    Optimized Front Baggle Geometry

    Angled front baffle delivers uncompromised direct–radiating height effects and enables unique versatility as front, center, surround and more.


    Exciting new surround sound formats such as Dolby Atmos®*, DTS:X® and Auro 3D®, often referred to as “object based surround sound”, unleash the ultimate immersive home audio experience by incorporating sound effects emanating from overhead. Previously, surround sound only existed on a single plane, but Height Effects Speakers are introducing a higher dimension of home theater audio.


Features & Specs

    Prime Elevation Piano Gloss (Pr.)
Best Seller
Manufacturer's Warranty
    5 Years Parts / 5 Years Labor - Carry In Service
Detailed Specifications
    Frequency Response and Electro–Acoustic Data
  • Rated bandwidth:55 Hz–25 kHz (+/–3 dB).
  • Nominal impedance:8 ohms.
  • Sensitivity:87 dB (2.83V @ 1 meter full–space, 300–3kHz).
  • Recommended amplifier power:20–150 watts.

  • Loudspeaker Physical Description
  • 5–way binding posts
  • 1” wide–flared rear–firing port
  • Cloth grille with pin/cup retention system
  • Magnetic SVS Logo which can be removed and oriented according to speaker application.
  • Elastomer stick–on bumper feet (adds 3mm to height)
  • Unique SVS Multi–Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of 4 positions
  • ¼” brass insert for use with included SVS Multi–Angle Wall Bracket (patent pending) and other bracket mounting systems.
  • Cabinet Dimensions:9.25" (H) × 5.44" (W) × 7.88" (D)
  • Overall Dimensions:9.4" (H) × 5.44" (W) × 8.33" (D) (includes grille, binding posts and bumper feet)
  • Overall Dimensions:9.25" (H) × 5.44" (W) × 8.98" (D) (includes grille and SVS Multi–Angle Wall Bracket (patent pending))
  • Weight Unboxed:7.8 pounds each

  • Driver Array and Technical Highlights
  • 1" tweeter features FEA–optimized diffuser and aluminum dome
  • 4.5" woofer features polypropylene cone, aluminum shorting ring, cast ABS–fiberglass
  • composite basket and vented voice coil former

  • SoundMatch Crossover Network
  • 2–way crossover with premium–grade capacitors, air–core inductors and heavy–trace printed
  • circuit boards
  • Crossover network delivers outstanding phase coherency and time domain behavior
  • Tweeter–to–woofer crossover:2.5 kHz (12 dB/octave slopes)
  • Cabinet Construction Technical Highlights
  • Acoustically transparent and FEA optimized grilles minimize diffraction
  • Chamfered front baffle and flush–mounted drivers reduce edge diffraction and improved off–axis high frequency response
  • FEA–optimized cabinet and bracing eliminates resonances
  • Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
Product Bullets
  • Height effects speakers for Dolby Atmos®, DTS:X® and Auro–3D.
  • Direct radiating speakers offer pinpoint accuracy and subtle refinement
  • Includes Multi–Angle Wall Bracket and ceiling mount insert
  • Magnetic SVS logo on the front grille is adjustable to accommodate position


Included Coverage from SVS: 5 Years Parts / 5 Years Labor - Carry In Service

Category ID: 61 | $499.98
